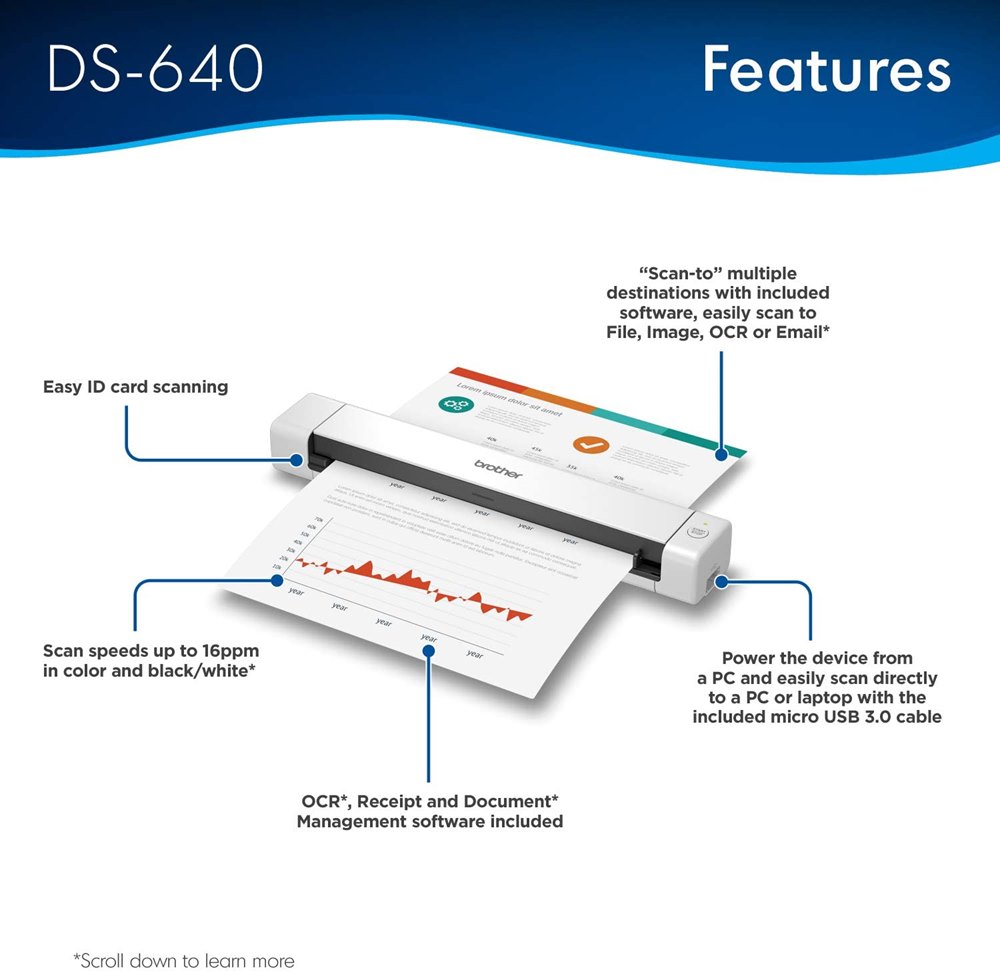

Key features
- 1-sided A4 scanning up to 15 pages per minute
- Compact and portable
- Industry leading software to scan documents, receipts and ID cards
- Power directly from a USB 3.0 port on PC
- Features and Specifications
General
Usage type Portable
Control panel LED, Key
Connectivity
USB interface Super Speed micro USB (Bus powered) 3.0 Type B
Dimensions & weights
With carton 377 W x 162 D x 76 H mm
With carton Western Europe: 845g, Nordics & Eastern Europe: 878 g
Without carton 301 W x 50.6 D x 36.8 H mm
Weight 466 g
Energy Consumption
Power Consumption - ready mode 1.3W
Operating 2.3 watts
Off 0.01 watts
Sound power 53 dB
Sound pressure 42 dBA
Environment
Operating humidity 20 to 80%
Operating temperature 5 to 35℃
In the box
Others DSmobile DS-640 Scanner, Micro USB Cable, Warranty, Quick setup giude, Product safety guide
Media specifications
Types and sizes Media size single width 50.8 - 215.9mm, length 86.4 - 1828.8mm, Card (landscape) width 85.6 length 53.98mm, Card thickness with embossed (face up) 1.24mm, Plastic card up to 1mm thickness, Receipt width 74 - 79.38mm length 105 - 355.6mm
Weights 35g - 270gsm
Operating systems & software
Software supplied - Mac iPS for macOS, Remote Setup, NewSoft® Presto!® BizCard 7
Software supplied - Windows iPS for Windows PC, Nuance® PaperPort SE 14,Kofax Power PDF Standard v3, Remote Setup, NewSoft® Presto!® BizCard 6
For latest firmware, software updates and compatibility for O.S., please visit https://support.brother.com/
Scanning
A4 Scan Speed Colour and mono up to 15ppm (USB 3.0 at 300dpi resolution)
Scan to Email, OCR, file and image
Drivers Windows: TWAIN, WIA, Windows 7, 8.1, 10 (32 & 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012, macOS: ICA 10.12.x, 10.13.x, 10.14.x Linux: SANE. For latest firmware, software updates and compatibility for O.S, please visit http://support.brother.com.
Greyscale 256
Interpolated scan resolution 1200 x 1200 dpi
Supplies and accessories
Optional accessories Carrier sheet (CSA-3401)
Warranty
Warranty 12 months
